This is a mechanical device in which the spinning pieces are attached to a general shaft.
The pump and motor are linked without the use of a coupling mechanism in a similar housing between the two shafts. As the name implies, mono denotes single, but a monoblock pump is a pump unit that is rigidly attached to a prime mover such as a motor. The main mover of the pump, namely the motor, and the pump are constructed simultaneously within the same housing in a monoblock pump.
Splendor Pump LLP - one of the top Monoblock Pump Manufacturers in India, providing pumping solutions to meet the demands of various industries. We can supply our clients with high-quality, low-cost products.
FeaturesTechnical Details
Higher Operating Efficiencies
Sailent Features
Material Of Construction Product Features
- Corrosion free Stainless Steel Shaft.
- Non Overloading characteristics.
- High quality Anti Frictional Ball bearings.
- Easy assembly and disassembly for servicing.
- Better Efficiency with consistent Performance.
- All motors are designed to start and run at low voltages.
- High quality mechanical seals / Gland packing.
- All rotating components are dynamically balanced for smooth operation.
- Highly durable oil seal protects the motor from foreign particles.

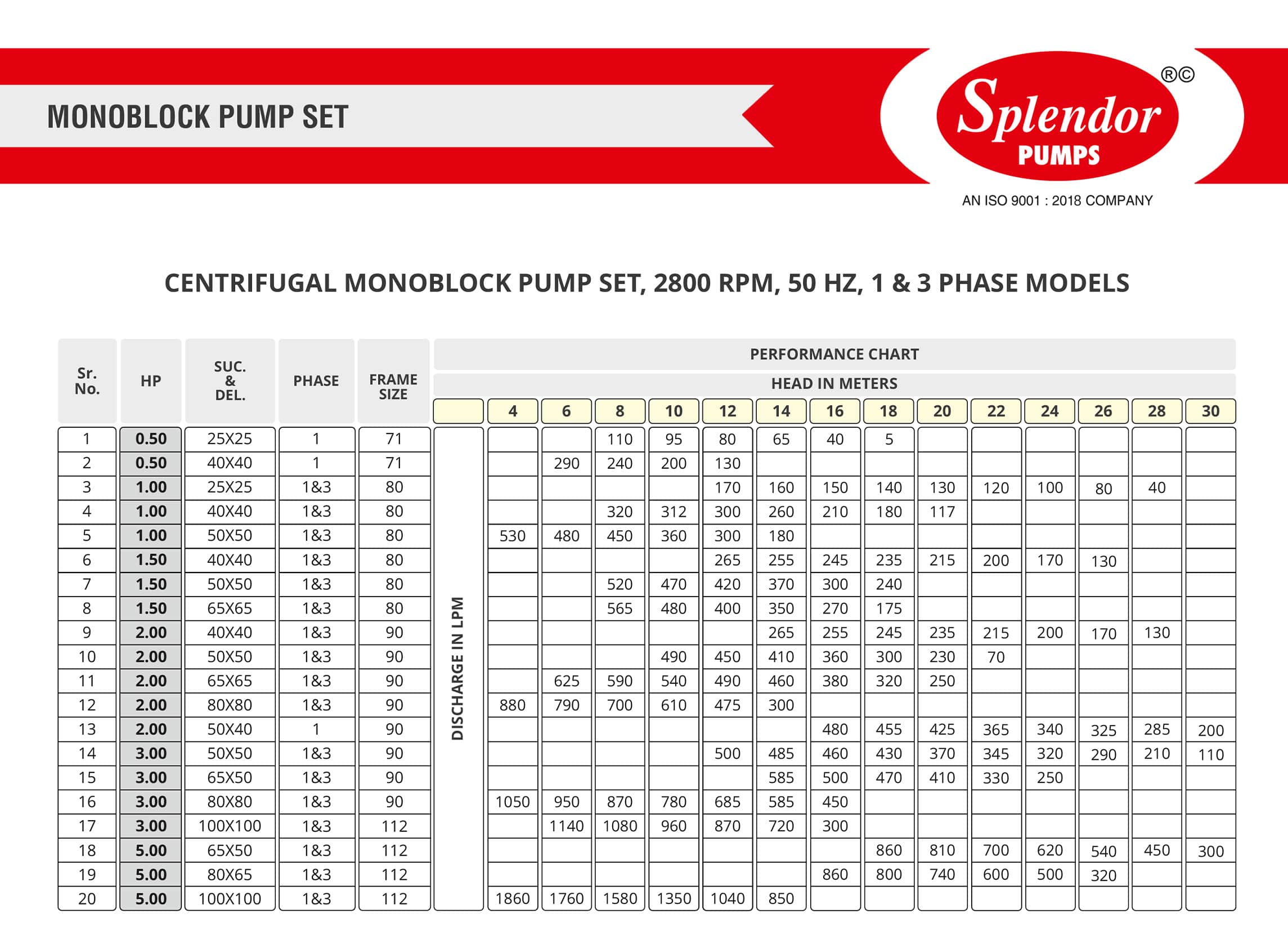

| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| 1 | KW / HP RANGE | 3.70/5.00 TO 3.75 / 5.00 |
| 2 | VOLTAGE RANGE | 220 TO 440 VOLT |
| 3 | DISCHARGE LPM | UP TO 2000 LITRE |
| 4 | HEAD | UP TO 30 METRE |
| 5 | SUCTION | 25 to 100 MM |
| 5 | DELIVERY | 25 to 100 MM |
| MATERIAL OF CONSTRUCTION | ||
|---|---|---|
| 1 | Motor Body | CI FG 200 |
| 2 | Motor Shaft | SS AISI 410 |
| 3 | Rotor | Aluminium Die Casting |
| 4 | Impeller | CI FG 200 |
| 5 | Delivery Casing | CI FG 200 |
| 6 | Fan Cover | Steel / MS |
PumpBuy from the Top Monoblock Pump Suppliers in India
Higher Operating Efficiencies
This implies that everything is done within our numerous production sites, from design and engineering through component fabrication, assembly, testing, and final finishing and packing. This allows us to maintain tight control over the quality of our products while keeping expenses low.
Because we have a huge manufacturing capacity, we can also supply products to our clients on time. Monoblock pumps are a common type of water pump. They get their name from the fact that they operate using centrifugal force from a centrifugal electric motor.
Openwell submersible monoblock pumps are put on a dry, rain-protected surface and operate and pump water from the source to the designated storage/usage location through an electric motor and pump linked via a single shaft (monoblock). If you need a high-quality monoblock pump, then get in touch with our team of experts.
TechnicalSpecifications
Higher Operating Efficiencies
An ISO 9001:2018 Company
An Agricultural Pump Industry Since 1997
ApplicationApplication Area Where We Serve
Higher Operating Efficiencies
AGRICULTURE
AGRICULTURE
DOMESTIC
INDUSTRY
HOSPITAL
GARDEN
